    Kapton polyimide film for H-class transformer and motor insulation

    Kapton polyimide film for H-class transformer and motor insulation Featured Image
    • Kapton polyimide film for H-class transformer and motor insulation
    • Kapton polyimide film for H-class transformer and motor insulation
    • Kapton polyimide film for H-class transformer and motor insulation
    • Kapton polyimide film for H-class transformer and motor insulation
    • Kapton polyimide film for H-class transformer and motor insulation

    Short Description:



    Polyimide film is also well known as kapton polyimide film, it’s specially designed for heat resistant and H-class insulation application such us transformer, motors, cables, lithium battery,etc. It has very good radiation resistance, shear resistance, solvent resistance, and high-class insulation. Merrill could provide various thickness range for PI film from 7um to 125um according to customer requirement, as well as high performance polyimide film tape mating supported.



    • Color options: Amber, Black, matte black, Green, Red
    • Thickness options: 7um, 12.5um, 25um, 35um, 50um, 75um. 100um, 125um.
    • Available roll size:
    • Max width: 500mm(19.68inches)
    • Length: 33meters


    Product Detail

    Product Tags







    Đặc điểm：

    1. High class insulation

    2. High temperature resistance

    3. Strong dielectric property

    4. Good shear resistance

    5. Excellent chemical stability ,

    6. Good radiation resistance,

    7. Easy to die-cut in any custom shape design

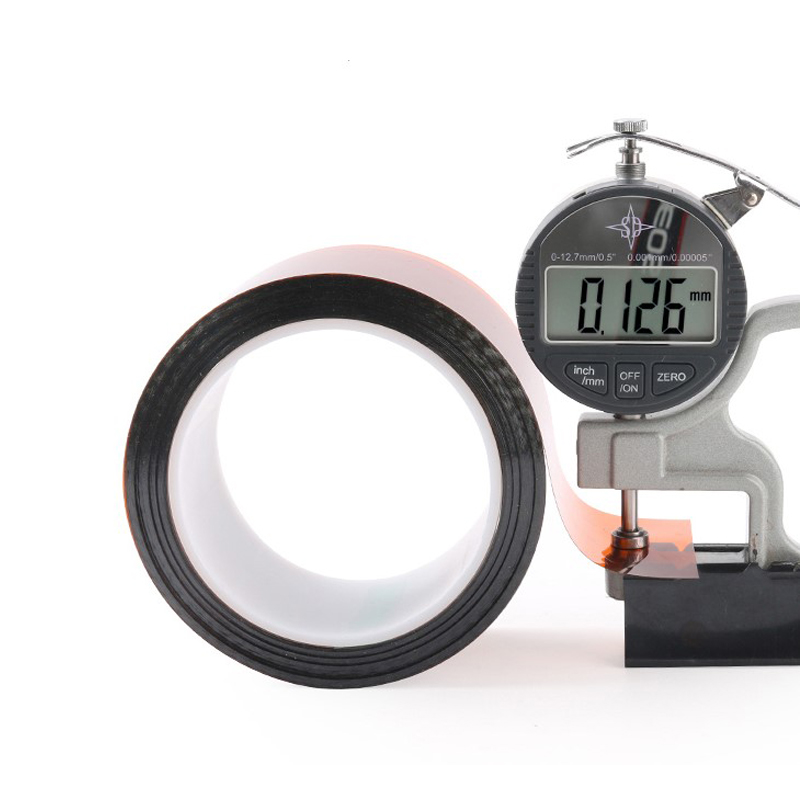

    heat resistant kapton film

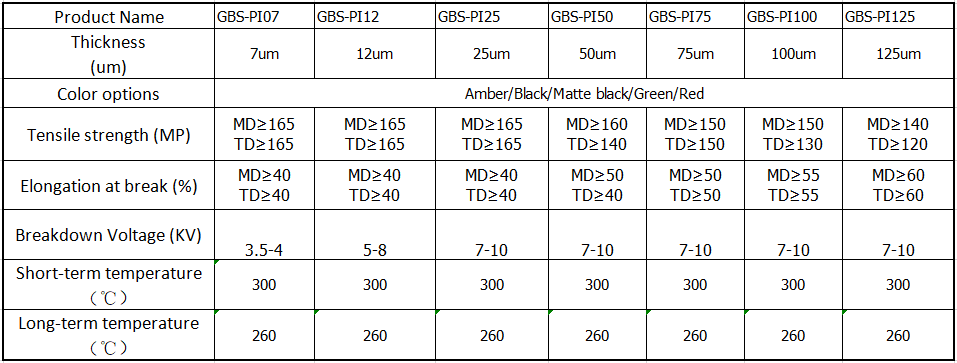

    Kapton Polyimide Film details

    Ứng dụng:

    Aerospace industry -- high class insulation function for aircraft and space craft wings

    PCB Board manufacturing -- as golden finger protection during wave solder or reflow soldering

    Capacitor and transformer -- as wrapping and insulation

    Motors and transformer’s insulation

    Automotive industry -- for wrapping switches, diaphragms, sensors in seat heaters or auto’s navigation part.

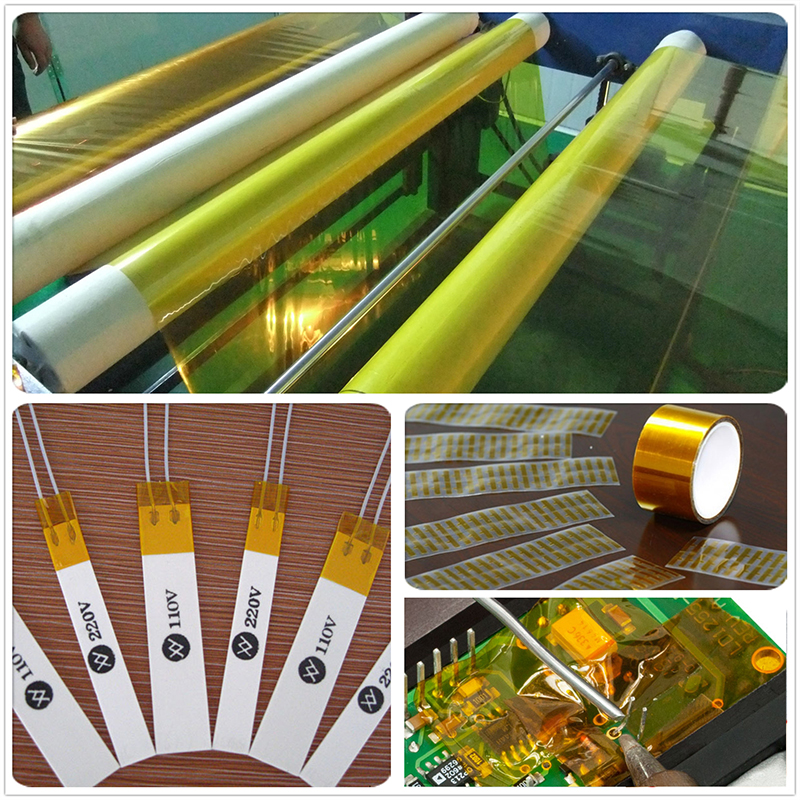

    heat resistant polyimide film
    application
